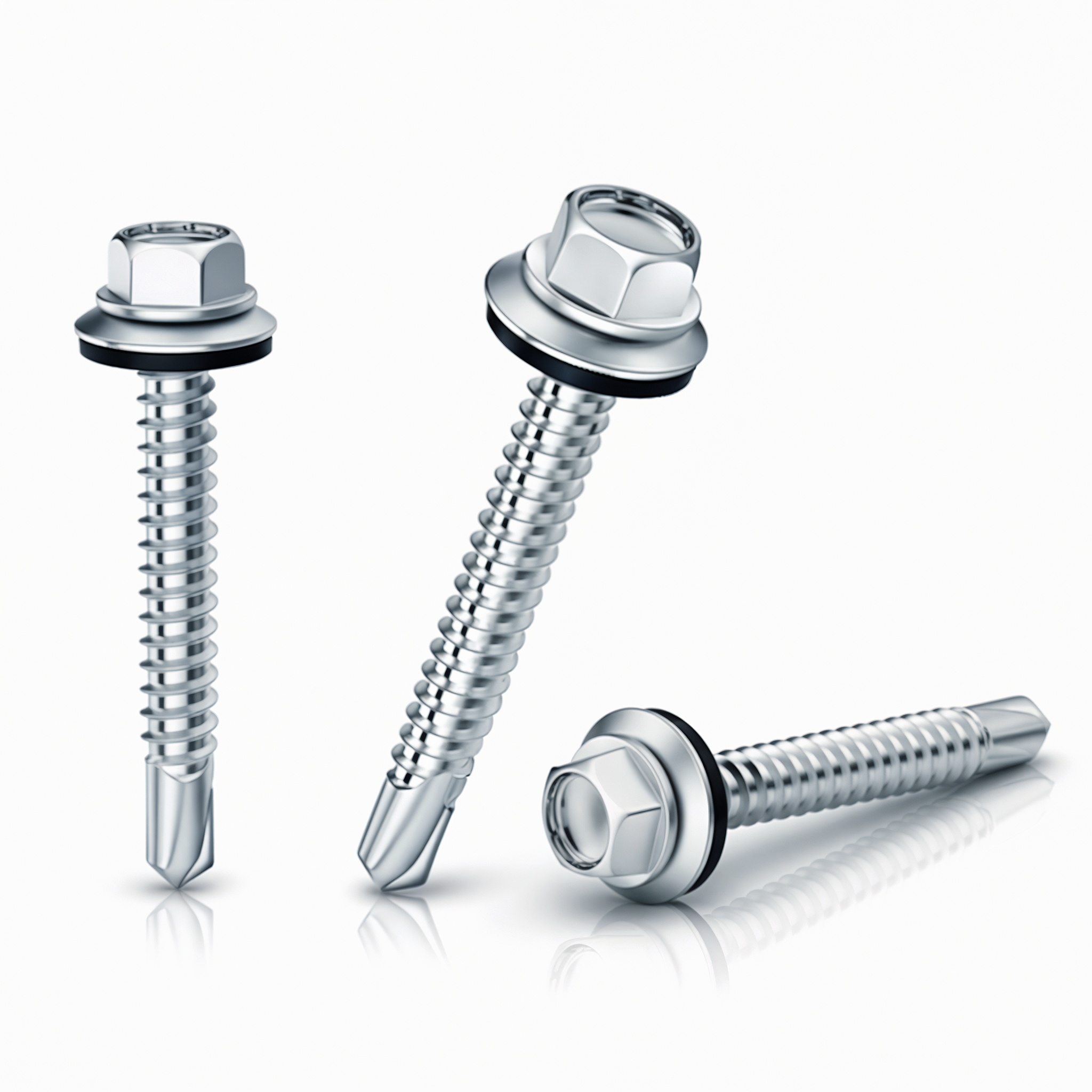

PJM HEX HEAD SELF-DRILLING SCREW

PJM Hex Head Self-Drilling Screws are engineered for powerful, fast, and hassle-free fastening in metal and steel structures. The precision self-drilling tip cuts through metal sheets without pre-drilling, saving time and effort at every installation. Featuring a strong hexagonal head for superior torque and a bonded washer for secure sealing, these screws provide excellent grip, tight fastening, and enhanced protection against water leakage. Made from high-strength steel with a corrosion-resistant coating, they deliver long-lasting performance in roofing, cladding, fabrication, and industrial applications.

Description

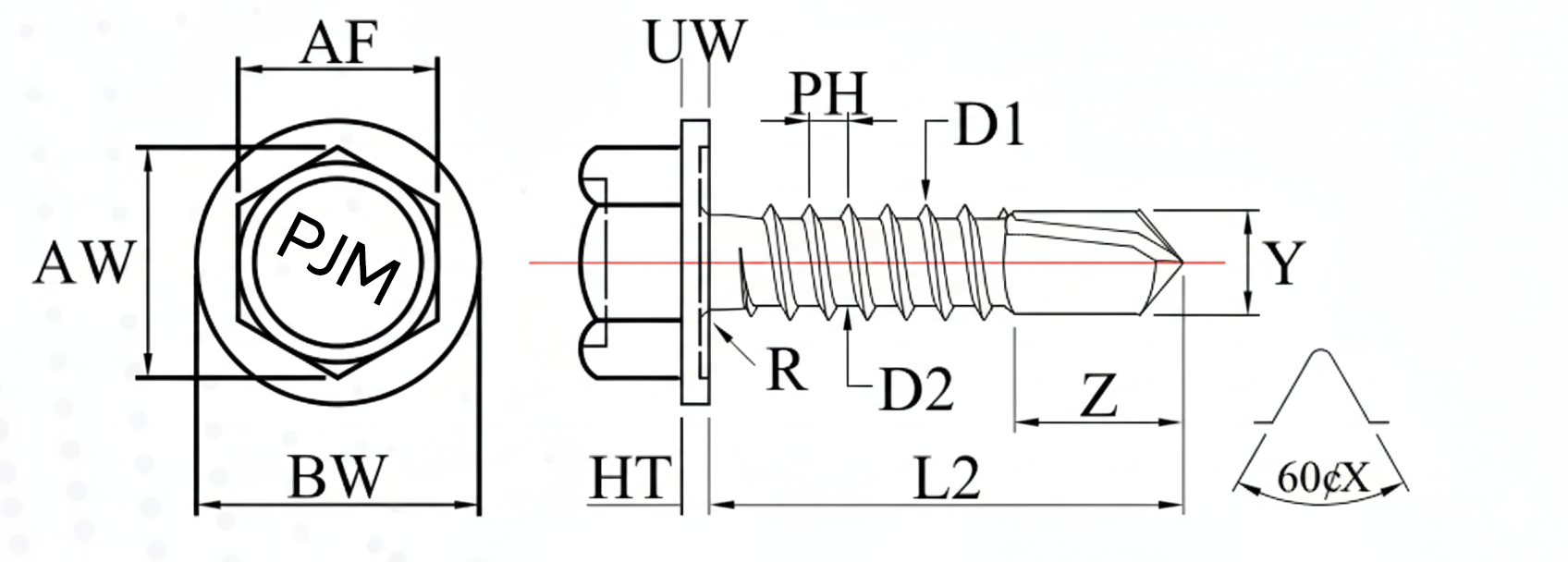

PJM Hex Head Self Drilling Screw Table
GAUGE Part No. Ø × Length Drilling cap. Drive
No.10 PJM1016HWHZN
PJM1020HWHZN
PJM1025HWHZN
4.8mm × 16mm
4.8mm × 20mm
4.8mm × 25mm
5mm 8mm Hex Socket
No.12 PJM1220HWHZN 5.5mm × 20mm 6mm
PJM1225HWHZN 5.5mm × 25mm
PJM1235HWHZN 5.5mm × 35mm
PJM1245HWHZN 5.5mm × 45mm
PJM1255HWHZN 5.5mm × 55mm 7mm
PJM1265HWHZN 5.5mm × 65mm
PJM1275HWHZN 5.5mm × 75mm
PJM1290HWHZN 5.5mm × 90mm
PJM12125HWHZN 5.5mm × 125mm
PJM12150HWHZN 5.5mm × 150mm
No.14 PJM1425HWHZN
PJM1438HWHZN
PJM1450HWHZN
6.3mm × 25mm
6.3mm × 38mm
6.3mm × 50mm
10mm Hex Socket
