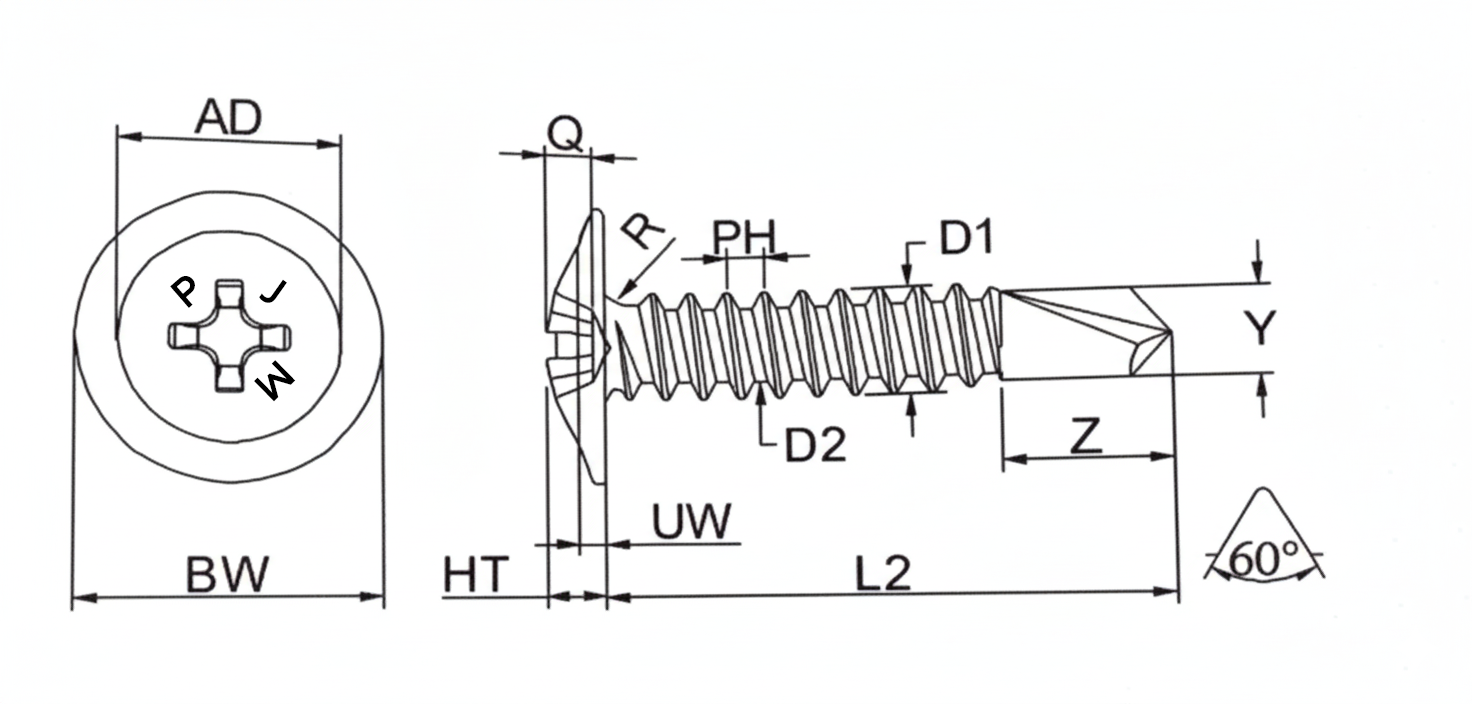

Modified truss head screws are also known as button head screws. Due to the wide base of the head, the need for a separate washer is
averted. -z-point allows stability and also 35% faster drilling in steel. An additional Teflon coating over zinc plating to resist corrosion
and enhance The life span of the screws. Commonly used for commercial and residential steel frame construction, fixing poly
carbonate sheet, sand hadow Covers, signboards, etc…
| GAUGE | Part No. | Ø x Length | Drilling cap. | Drive |
|---|---|---|---|---|
| No.8 |
PJM813MTZN PJM816MTZN PJM819MTZN PJM825MTZN PJM835MTZN |
4.2mm x 13mm 4.2mm x 16mm 4.2mm x 19mm 4.2mm x 25mm 4.2mm x 35mm |
4mm | PH #2 |
| No.10 |
PJM1025MTZN PJM1032MTZN PJM1038MTZN |
4.8mm x 25mm 4.8mm x 32mm 4.8mm x 38mm |
5mm | PH #2 |
